X-Folding container house | Stable Space, Folding Future

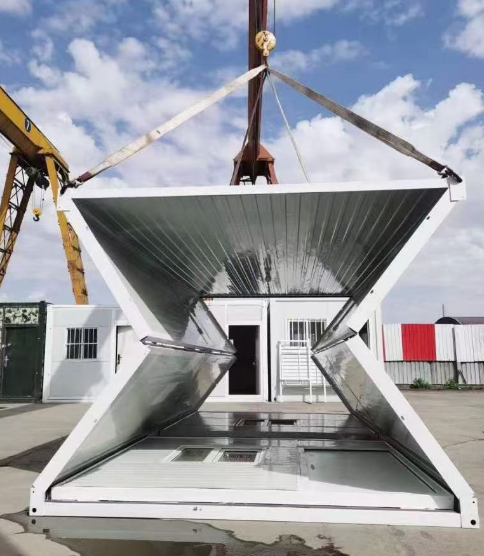

The X folding container house features an innovative X-shaped support structure at its core, achieving a perfect balance of structural stability and spatial flexibility in both folded and unfolded states. This design not only ensures the overall strength and durability of the building but also provides excellent resistance to compression and deformation, redefining the structural standards of foldable buildings.
Deployable Anytime, Freely Defined Space Units
Each X folding container house is a complete, independently usable, and rapidly deployable space unit. Without complex foundations or construction periods, it can be quickly put into use in various terrains and environments, providing users with functional spaces that can be defined and adjusted as needed, truly realizing the flexible concept of "space as a service."
Folding the Future, Unlocking New Possibilities for Mobile Spaces
In its folded state, the X folding container house is highly efficient for transportation and convenient for storage; in its unfolded state, it becomes a stable, reliable, and fully functional usable space. It is not just a building, but a future-oriented spatial solution, suitable for various scenarios such as emergency shelters, mobile offices, and commercial displays, bringing a sustainable and innovative path to space utilization.
Guangdong Zhonghuilvjian Moving House Technology Co., Ltd. |
|||
| Web:www.cgchcontainer.com | |||
| Add:#3 Factory,No.633 Heshun Road,Heshan Industry, Heshan City, Guangdong China. | |||
| Material list | Reference picture | ||
| Product specification |
Dimension（exterior） | 5800(L)mm*2480(W)mm*2560(H)mm |  |
| Dimension（interior） | 5620(L)mm*2320(W)mm*2420(H)mm | ||
| Dimension(folding) | 5800(W)mm*2460(W)mm*320(H)mm | ||
| Type of roof | Flat roof | ||
| Stacked layers | ≤3 layers | ||
| Design Parameters | Service life | 10 years |  |
| Earthquake resistance | Level 8 | ||
| Wind resistance | Level 9 | ||
| Fire prevention | Class A | ||
| Ground live load | 200kg/㎡ | ||
| Roof live load | 50kg/㎡ | ||
| Structure | Top | Q235 Rectangular square pipe, galvanized square pipe, Angle steel, corrugated corrugated board, rock wool, ceiling board |  |
| Long side | L-shaped steel plate, P-shaped pipe, hinge, wall panel, galvanized buckle groove, D-type rubber strip |  |
|
| short side | P-type pipe, galvanized buckle groove, wall panel, galvanized Angle, window, door, rubber strip |  |
|

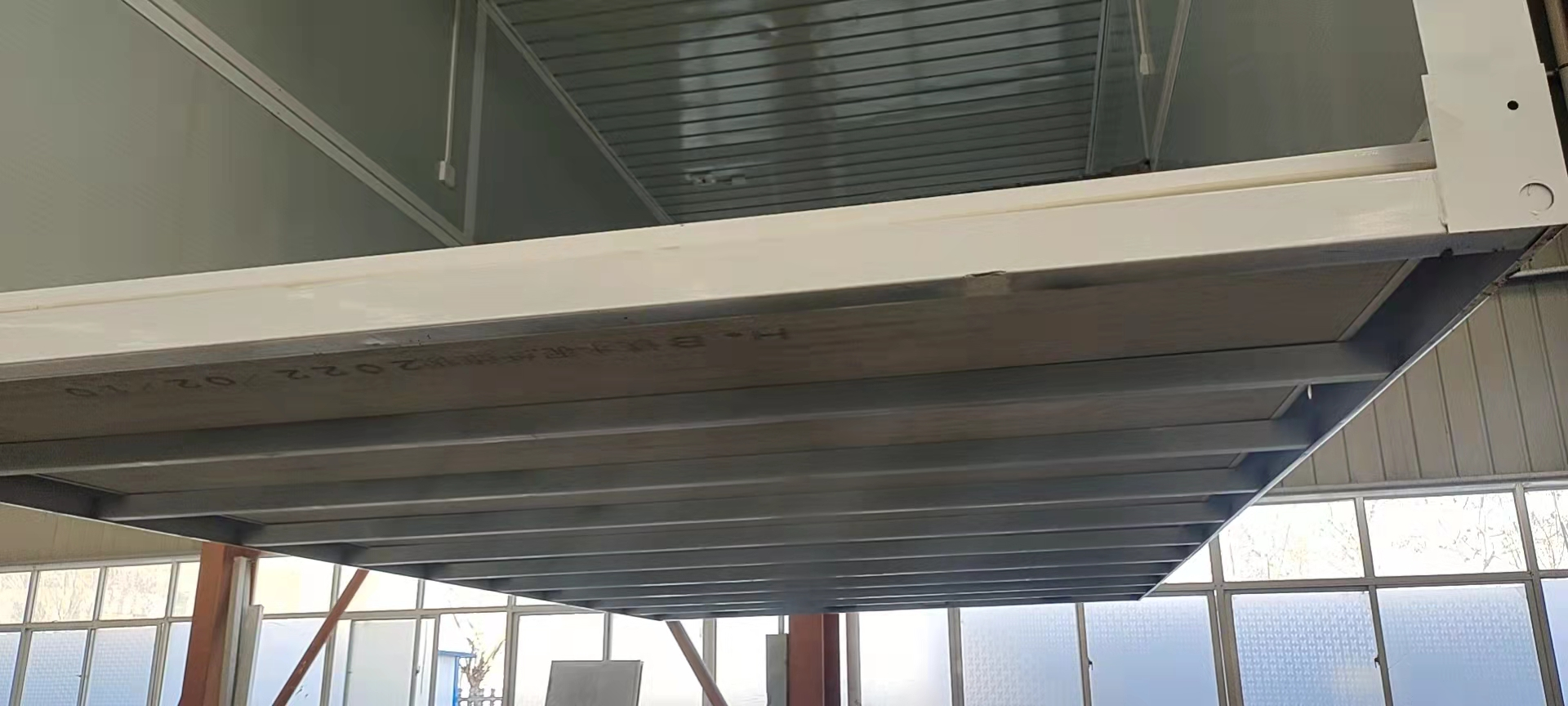

| Bottom main beam | Custom galvanized square pipe, hinge, Q235B rectangular square pipe, floor |  |
|
| Roof | Solid frame paint | Electrostatic spray/Plain plastic powder/Light yellow |  |

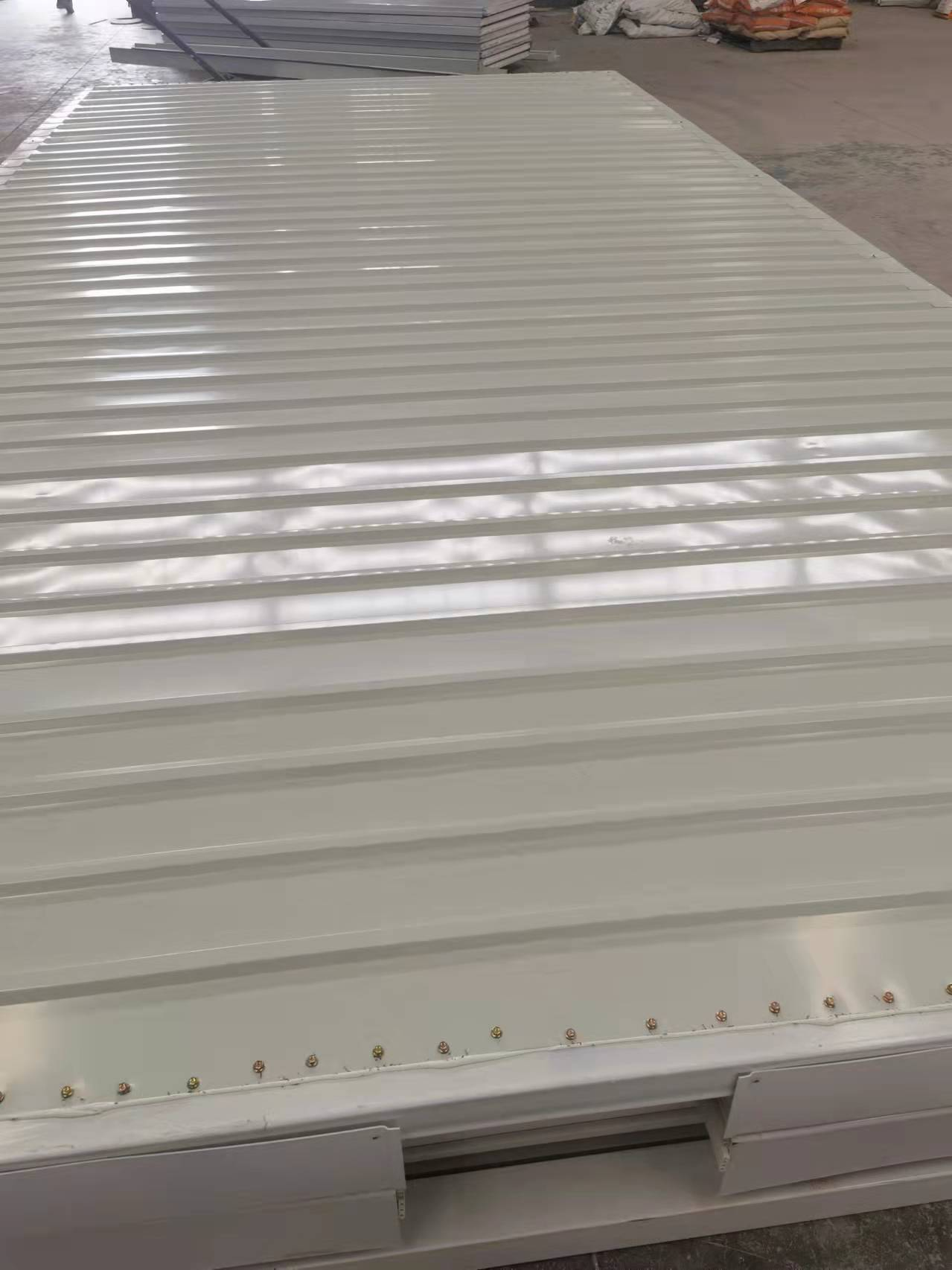

| top plating | Color steel corrugated board 0.35mm*7 pieces (arch in the middle of the top) | ||
| Internal ceiling | Color steel veneer V910/0.20mm | ||
| Floor board | Substrate | Cement sanding floor 15mm |
 |

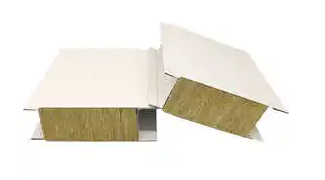

| Wall | Insulation | 50mm thick rock wool sandwich panel, Class A fire protection， 50kg/m³ |  |
| Color steel plate | white 0.3mm thickness | ||
| Door | Size | High quality security door (warm white) size:970mm*1970mm |
 |
| Material | Steel door, concealed buckle lock | ||
| Window | Size | 970mm*1970mm |  |
| Material | Sliding Plastic steel window | ||
| Glass | single layers glass | ||
| Electricity | Lighting | LED strip light × 2 sets, 36W/set, 1200 |
    |
| Socket | 10A five-hole socket × 3, 16A air-conditioning socket × 1, reserved weak current cassette × 1 | ||
| switch | One-button switch × 1 | ||
| distribution box | Concealed electrical box 32A × 1 | ||
| Industrial plug | included | ||
| Wiring | Household line: 2*6 squares + 1*2.5 squares, air-conditioning socket: 2*4 squares + 1*1.5 squares, five-hole socket: 2*2.5 squares + 1*1.5 squares, lighting: 3*1.5 squares, all plus white sheath tube | ||
FAQ
In which scenarios are CGCH's products primarily applied?
CGCH modular building products are widely utilized across a diverse range of settings, including commercial retail, dining spaces, cultural tourism and hospitality, engineering camps, emergency support facilities, military research centers, and arts and cultural venues. Whether the project calls for a pop-up shop, a café, or a resort hotel—or even a polar research station or disaster relief housing—we are able to provide customized solutions.
How long does it take to install one standard unit?
The service life varies slightly across different product series:
Detachable and Foldable Container houses: 10–15 years
Expandable Containers: 15–20 years
Space Pods: The main structural components carry a 30-year warranty, and the overall design life exceeds 30 years.
Under conditions of normal use and maintenance, the products are capable of stable, long-term operation.
How is the thermal insulation performance of container homes?
We utilize 50–100mm rock wool, polyurethane (PU), or glass wool sandwich panels, combined with a thermal-break structure, to accommodate environments ranging from extreme cold at -48°C to scorching desert heat at +46°C. The doors and windows come standard with triple-glazed, double-cavity insulated glass, effectively blocking thermal conduction.
What are the typical application scenarios?
We utilize 50–100mm rock wool, polyurethane (PU), or glass wool sandwich panels, combined with a thermal-break structure, to accommodate environments ranging from extreme cold at -48°C to scorching desert heat at +46°C. The doors and windows come standard with triple-glazed, double-cavity insulated glass, effectively blocking thermal conduction.
How long does it take to install a container house?
Installation times vary depending on the product type:
Foldable Container house(Type X): 10 minutes (2 people)
Foldable Container house(Type Z): 15 minutes (3 people + crane)
Detachable Container House: 3 hours (4 people)
Expandable Container House: 10 minutes to expand (4 people)
Space Capsule: Ready for occupancy within 2 hours of arrival
Detailed installation diagrams and video tutorials are provided for all products.
Does CGCH provide overseas installation services?
Yes. For projects valued at over one million, we can dispatch professional technical personnel to the site to supervise the installation. For standard projects, we provide multilingual installation videos, technical drawings, and remote video support to ensure that local workers can complete the installation independently.
Project Cases
Qatar World Cup Fan Village Project
CGCH successfully supplied detachable container houses for the Qatar World Cup Fan Village, providing fast, flexible, and comfortable accommodation solutions for international visitors. Thanks to their modular design, rapid installation, and durable steel structure, the units were deployed efficiently to meet the large-scale accommodation demands of the tournament. This project demonstrated the reliability and versatility of CGCH container housing solutions for major global events.
Russia Yelabuga International Camp Project
CGCH successfully delivered a large-scale Flat Pack Container House project for the Yelabuga International Camp in Russia, providing modern accommodation and support facilities for workers and project personnel. Designed to withstand harsh climate conditions, the modular buildings feature excellent thermal insulation, robust steel structures, and rapid installation capabilities. Through efficient production, transportation, and on-site assembly, CGCH helped the client create a comfortable, durable, and scalable living environment, demonstrating the reliability of our container housing solutions in large international projects.
Philippines Modular Housing Project
Following the powerful earthquakes that struck Turkey in 2023, hundreds of thousands of people were left homeless and in urgent need of emergency housing that could be rapidly deployed, easily transported, and adapted to cold weather conditions. Roads in the disaster zones were severely damaged, making it difficult for heavy machinery to gain access. CGCH supplied 2,000 units of its "Z-type" foldable container housing, featuring extra-thick 75mm wall panels and underfloor heating systems to meet the winter thermal insulation requirements of the affected regions. When folded, ten units can be loaded into a single 40-foot High Cube container, significantly reducing shipping costs. Upon arrival at the site, a team of three workers—assisted by just one small crane—can fully unfold and set up a single unit in as little as 15 minutes, requiring no complex foundation work.
