Z-type folding container house | Airtight folding, built-in drainage to prevent water accumulation

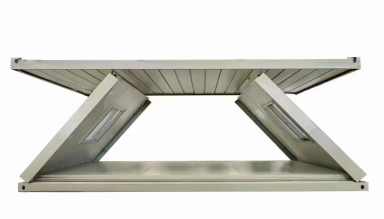

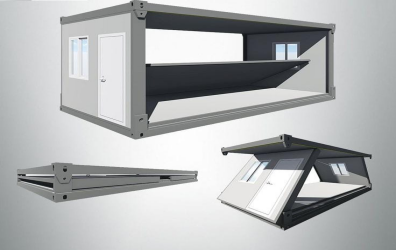

The Z folding container house features a unique short-side folding structure design, resulting in a high volume compression ratio during transportation, significantly reducing logistics costs. The folding process is secure and reliable, effectively preventing dust and rainwater from entering during transit, ensuring the interior remains clean before arrival at the site, laying the foundation for rapid deployment.
Built-in Drainage System to Eliminate Water Accumulation Problems
This product features an integrated drainage system with scientifically designed drainage slopes and internal pipes, ensuring rapid removal of rainwater and accumulated water in any usage environment. This completely solves the leakage and water accumulation problems of traditional folding houses. Whether in rainy weather or on uneven ground, the Z folding container house maintains a dry and comfortable interior.
High Reliability and Rapid Deployment, Adaptable to Multiple Scenarios
Thanks to its high-quality sealing structure and smooth drainage design, the Z folding container house combines folding convenience with reliable performance. It's ready to use right out of the box and unfolds quickly, making it suitable for various scenarios such as construction site camps, emergency shelters, and mobile offices, providing users with a high-quality mobile space solution that is efficient, reliable, and practical.
Guangdong Zhonghuilvjian Moving House Technology Co., Ltd. | |||
| Web: www.cgchcontainer.com | |||
| Factories Add: East Rd, Anhi Province & Dongshan Xinyue Rd, Guangdong ; Office Add:No. 662, Huangpu Avenue Middle, Tianhe District, Guangzhou, China _ | |||
| Material list | Reference picture | ||

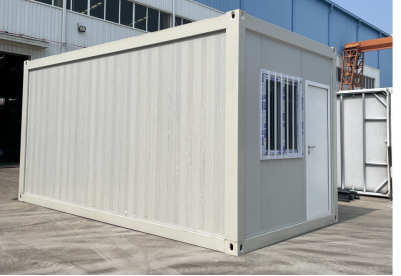

| Product specification | Dimension（exterior） | 5900(L)mm*2500(W)mm*2470(H)mm |  |
| Dimension（interior） | 5780(L)mm*2340(W)mm*2280(H)mm | ||

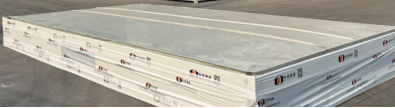

| Dimension(folding) | 5900(W)mm*2500(W)mm*450(H)mm | ||
| Type of roof | Flat roof inner drain pipe | ||
| Stacked layers | ≤3 layers | ||
| Design Parameters | Service life | 20 years |  |
| Earthquake resistance | Class A | ||
| Wind resistance | Class 10 | ||
| Fire prevention | Class A | ||
| Ground live load | 2.0KN/㎡ | ||
| Roof live load | 1.0KN/㎡ | ||
| Structure | Column | 180×150×2210mm，Roller beam,Q235B material,(2.5mm thickness) |  |
| Roof main beam | 50mm*130mm，Roller beam,Q235B material,(2.5mm thickness) | ||
| Roof secondary beam | 50mm*25mm, galvanized cold rolled section steel，Q235B material,(1.2mm thickness) | ||
| Bottom main beam | 50mm*130mm，Roller beam,Q235B material,(2.5mm thickness) | ||
| Bottom secondary beam | 80mm*40mm, galvanized cold rolled section steel，Q235B material,(1.2mm thickness) | ||
| Bolts | 8 pieces high-strength bolts(8.8 levels) | ||
| Paint | Electrostatic spraying plastic powder painting≥80μm | ||
| Roof | Waterproof layer | 0.4mm thick galvanized color steel plate, white gray color, PE coating; 180 degree seam overlap |  |
| Insulation layer | Glass wool insulation layer, 50mm thick, single-sided aluminum foil, bulk density 10kg/m³, combustion performance is Class A1 non-combustible. | ||

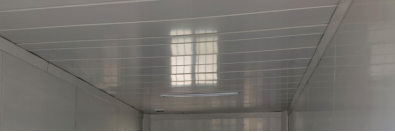

| Ceiling | 0.42mm thickness, color pearl white, PE coating | ||
| Floor board | Substrate | 18mm fireproof cement fiber board with 1.6mm pvc flooring |  |
| Wall | Insulation | 50mm thick EPS sandwich panel, Class A fire protection， 12kg/m³ | |
| Color steel plate | white 0.275mm thickness | ||
| Door | Size | W840mm*H2035mm, Horizontal sliding, with window cover | |
| Material | Steel door, concealed buckle lock | ||
| Window | Size | 800mm*1100mm | |
| Material | Sliding Plastic steel window | ||
| Glass | single layer glass | ||
| Electricity | Lighting | LED strip light × 2 sets, 36W/set, 1200 | |
| Socket | 10A five-hole socket × 3, 16A air-conditioning socket × 1, reserved weak current cassette × 1 | ||
| switch | One-button switch × 1 | ||
| distribution box | Concealed electrical box 32A × 1 | ||
| Industrial plug | included | ||
| Wiring | Household line: 6 squares, air-conditioning socket: 4 squares , five-hole socket: 2.5 squares, lighting: 1.5 squares, all plus white sheath tube | ||
| Others | Folding hardware | Special parts, no hinges | |
Recommend Products
FAQ
In which scenarios are CGCH's products primarily applied?
CGCH modular building products are widely utilized across a diverse range of settings, including commercial retail, dining spaces, cultural tourism and hospitality, engineering camps, emergency support facilities, military research centers, and arts and cultural venues. Whether the project calls for a pop-up shop, a café, or a resort hotel—or even a polar research station or disaster relief housing—we are able to provide customized solutions.
How long does it take to install one standard unit?
The service life varies slightly across different product series:
Detachable and Foldable Container houses: 10–15 years
Expandable Containers: 15–20 years
Space Pods: The main structural components carry a 30-year warranty, and the overall design life exceeds 30 years.
Under conditions of normal use and maintenance, the products are capable of stable, long-term operation.
How is the thermal insulation performance of container homes?
We utilize 50–100mm rock wool, polyurethane (PU), or glass wool sandwich panels, combined with a thermal-break structure, to accommodate environments ranging from extreme cold at -48°C to scorching desert heat at +46°C. The doors and windows come standard with triple-glazed, double-cavity insulated glass, effectively blocking thermal conduction.
What are the typical application scenarios?
We utilize 50–100mm rock wool, polyurethane (PU), or glass wool sandwich panels, combined with a thermal-break structure, to accommodate environments ranging from extreme cold at -48°C to scorching desert heat at +46°C. The doors and windows come standard with triple-glazed, double-cavity insulated glass, effectively blocking thermal conduction.
How long does it take to install a container house?
Installation times vary depending on the product type:
Foldable Container house(Type X): 10 minutes (2 people)
Foldable Container house(Type Z): 15 minutes (3 people + crane)
Detachable Container House: 3 hours (4 people)
Expandable Container House: 10 minutes to expand (4 people)
Space Capsule: Ready for occupancy within 2 hours of arrival
Detailed installation diagrams and video tutorials are provided for all products.
Does CGCH provide overseas installation services?
Yes. For projects valued at over one million, we can dispatch professional technical personnel to the site to supervise the installation. For standard projects, we provide multilingual installation videos, technical drawings, and remote video support to ensure that local workers can complete the installation independently.
Project Cases
Qatar World Cup Fan Village Project
CGCH successfully supplied detachable container houses for the Qatar World Cup Fan Village, providing fast, flexible, and comfortable accommodation solutions for international visitors. Thanks to their modular design, rapid installation, and durable steel structure, the units were deployed efficiently to meet the large-scale accommodation demands of the tournament. This project demonstrated the reliability and versatility of CGCH container housing solutions for major global events.
Russia Yelabuga International Camp Project
CGCH successfully delivered a large-scale Flat Pack Container House project for the Yelabuga International Camp in Russia, providing modern accommodation and support facilities for workers and project personnel. Designed to withstand harsh climate conditions, the modular buildings feature excellent thermal insulation, robust steel structures, and rapid installation capabilities. Through efficient production, transportation, and on-site assembly, CGCH helped the client create a comfortable, durable, and scalable living environment, demonstrating the reliability of our container housing solutions in large international projects.
Philippines Modular Housing Project
Following the powerful earthquakes that struck Turkey in 2023, hundreds of thousands of people were left homeless and in urgent need of emergency housing that could be rapidly deployed, easily transported, and adapted to cold weather conditions. Roads in the disaster zones were severely damaged, making it difficult for heavy machinery to gain access. CGCH supplied 2,000 units of its "Z-type" foldable container housing, featuring extra-thick 75mm wall panels and underfloor heating systems to meet the winter thermal insulation requirements of the affected regions. When folded, ten units can be loaded into a single 40-foot High Cube container, significantly reducing shipping costs. Upon arrival at the site, a team of three workers—assisted by just one small crane—can fully unfold and set up a single unit in as little as 15 minutes, requiring no complex foundation work.
