Detachable container house | Modular, fast-assembly system for efficient deployment and immediate move-in
The detachable container house features a factory-prefabricated modular design, with all components pre-drilled and precisely aligned. On-site assembly of a standard unit can be completed in 3-5 hours by just four people using basic tools, without the need for heavy machinery, enabling "install-on-arrival and immediate occupancy."
Highly Flexible, Supporting Multiple Customizations
We offer comprehensive customization options, from size, wall materials, and roof structure to exterior colors, meeting diverse climate, functional, and aesthetic needs. The detachable container house can be flexibly configured with insulation, drainage, and electrical systems according to project requirements, adapting to various usage scenarios.
Robust Structure, Durable and Long-Lasting
This detachable container house boasts excellent wind resistance (Level 12), seismic resistance (Level 8), and fire resistance (Class A, >3 hours), with outstanding thermal insulation. It has a service life of 12-15 years. Optional features include solar panels and trailer chassis, making it suitable for residential, office, commercial, and emergency uses.
Guangdong Zhonghuilvjian Moving House Technology Co., Ltd. |
|||
| Web:www.cgchcontainer.com | |||
| Add:#3 Factory,No.633 Heshun Road,Heshan Industry, Heshan City, Guangdong China. | |||
| Material list | Reference picture | ||
| Product specification |

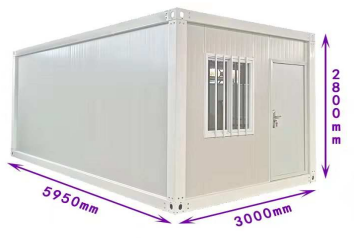

Dimension（exterior） | 5950(L)mm*3000(W)mm*2800(H)mm |  |
| Dimension（interior） | 5800(L)mm*2800(W)mm*2500(H)mm | ||
| Roof form | Roof tile, color steel plate | ||
| Drainage form | External drainage organization | ||
| Number of layers | ≤3 layers | ||
| Design Parameters | Service life | 8-10 years |  |
| Earthquake resistance | Level 8 | ||
| Wind resistance | Level 12 | ||
| Fire prevention | Class A, flame retardant | ||

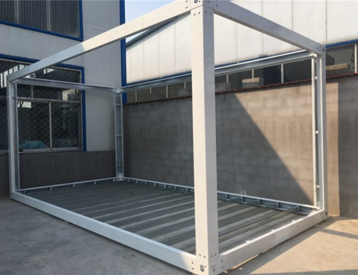

| Structure | prism | 2480mm*160mm*2.3mm thick, cold-formed galvanized steel (paint) |  |
| Roof main beam | "5630mm*160*2.3mm thick 2680mm*160*2.3mm thick Cold-formed galvanized steel (paint)" |
||
| Ground beam | "5630mm*160*2.3mm thick 2680mm*160*2.3mm thick Cold-formed galvanized steel (paint)" |
||
| Roof secondary beam | "40*60 galvanized square pipe (1.2mm thick) 50*50 galvanized square pipe (1.5mm thick)" |
||
| Ground secondary beam | "80*80 galvanized square pipe (1.2mm thick) 40*80 galvanized square pipe (1.2mm thick)" |
||
| paint | Baking varnish, ≥60um thick, white | ||
| Roof | Roof panel | 980 type galvanized color coated top tile (0.45mm thick) |  |

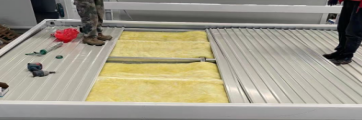

| Insulation cotton | 5CM thick glass wool, bulk density 14KG | ||
| Ceiling board | Type 981 galvanized color-coated pressure top tile (0.25mm thick) | ||
| Floor | Substrate | MGO board, 1147*2800, |  |

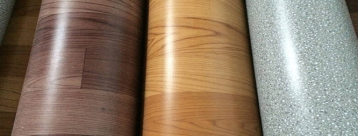

| Decorative panel | Not included in the standard box, can be customized according to customer requirements, additional charges |  |
|

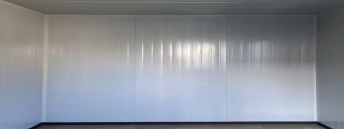

| Wall | Wall panel | 950 type 50mm EPS sandwich panel |  |
| Color steel plate | "Double-sided color steel plate 0.3mm thick | ||
| Keep warm | EPS bulk density 12KG | ||
| Door | specification | 950*2070 |   |
| Material | 304stainless steel | ||
| Window | specification | 925*1200 |  |
| Frame material | Sliding Plastic steel window | ||
| Glass | Single glass | ||
| Electricity （Optional） |
Voltage | LED strip light × 2 sets, 36W/set, 1200 |
    |
| wire | 10A five-hole socket × 3, 16A air-conditioning socket × 1, reserved weak current cassette × 1 | ||
| Distribution box | One-button switch × 1 | ||
| distribution box | Concealed electrical box 32A × 1 | ||
| illumination | included | ||
| socket | Household line: 2*6 squares + 1*2.5 squares, air-conditioning socket: 2*4 squares + 1*1.5 squares, five-hole socket: 2*2.5 squares + 1*1.5 squares, lighting: 3*1.5 squares, all plus white sheath tube | ||
| other decoration | Skirting | Color steel angle aluminum |  |
| Top and column edging | |||
Recommend Products
FAQ
In which scenarios are CGCH's products primarily applied?
CGCH modular building products are widely utilized across a diverse range of settings, including commercial retail, dining spaces, cultural tourism and hospitality, engineering camps, emergency support facilities, military research centers, and arts and cultural venues. Whether the project calls for a pop-up shop, a café, or a resort hotel—or even a polar research station or disaster relief housing—we are able to provide customized solutions.
How long does it take to install one standard unit?
The service life varies slightly across different product series:
Detachable and Foldable Container houses: 10–15 years
Expandable Containers: 15–20 years
Space Pods: The main structural components carry a 30-year warranty, and the overall design life exceeds 30 years.
Under conditions of normal use and maintenance, the products are capable of stable, long-term operation.
How is the thermal insulation performance of container homes?
We utilize 50–100mm rock wool, polyurethane (PU), or glass wool sandwich panels, combined with a thermal-break structure, to accommodate environments ranging from extreme cold at -48°C to scorching desert heat at +46°C. The doors and windows come standard with triple-glazed, double-cavity insulated glass, effectively blocking thermal conduction.
What are the typical application scenarios?
We utilize 50–100mm rock wool, polyurethane (PU), or glass wool sandwich panels, combined with a thermal-break structure, to accommodate environments ranging from extreme cold at -48°C to scorching desert heat at +46°C. The doors and windows come standard with triple-glazed, double-cavity insulated glass, effectively blocking thermal conduction.
How long does it take to install a container house?
Installation times vary depending on the product type:
Foldable Container house(Type X): 10 minutes (2 people)
Foldable Container house(Type Z): 15 minutes (3 people + crane)
Detachable Container House: 3 hours (4 people)
Expandable Container House: 10 minutes to expand (4 people)
Space Capsule: Ready for occupancy within 2 hours of arrival
Detailed installation diagrams and video tutorials are provided for all products.
Does CGCH provide overseas installation services?
Yes. For projects valued at over one million, we can dispatch professional technical personnel to the site to supervise the installation. For standard projects, we provide multilingual installation videos, technical drawings, and remote video support to ensure that local workers can complete the installation independently.
Project Cases
Qatar World Cup Fan Village Project
CGCH successfully supplied detachable container houses for the Qatar World Cup Fan Village, providing fast, flexible, and comfortable accommodation solutions for international visitors. Thanks to their modular design, rapid installation, and durable steel structure, the units were deployed efficiently to meet the large-scale accommodation demands of the tournament. This project demonstrated the reliability and versatility of CGCH container housing solutions for major global events.
Russia Yelabuga International Camp Project
CGCH successfully delivered a large-scale Flat Pack Container House project for the Yelabuga International Camp in Russia, providing modern accommodation and support facilities for workers and project personnel. Designed to withstand harsh climate conditions, the modular buildings feature excellent thermal insulation, robust steel structures, and rapid installation capabilities. Through efficient production, transportation, and on-site assembly, CGCH helped the client create a comfortable, durable, and scalable living environment, demonstrating the reliability of our container housing solutions in large international projects.
Philippines Modular Housing Project
Following the powerful earthquakes that struck Turkey in 2023, hundreds of thousands of people were left homeless and in urgent need of emergency housing that could be rapidly deployed, easily transported, and adapted to cold weather conditions. Roads in the disaster zones were severely damaged, making it difficult for heavy machinery to gain access. CGCH supplied 2,000 units of its "Z-type" foldable container housing, featuring extra-thick 75mm wall panels and underfloor heating systems to meet the winter thermal insulation requirements of the affected regions. When folded, ten units can be loaded into a single 40-foot High Cube container, significantly reducing shipping costs. Upon arrival at the site, a team of three workers—assisted by just one small crane—can fully unfold and set up a single unit in as little as 15 minutes, requiring no complex foundation work.
